Print Material
Stainless Steel AISI 304
(Click here to see our warranty.)
Technical Specifications

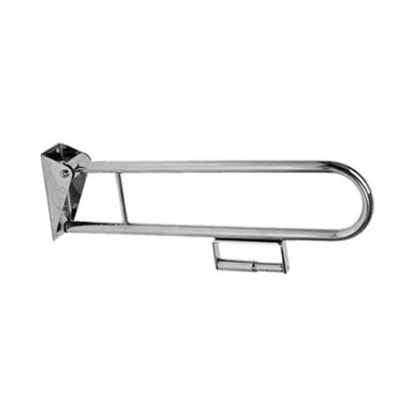

Swing Up Grab Bar is manufactured completely from AISI 304 stainless steel. Grab bar is 25mm tube, 1.5mm thick and is mechanically pressed into solid stainless steel pivot. Pivot attaches to 2mm thick mounting flange with 14mm diameter solid stainless steel bar. Mounting flange is securely attached to wall with four exposed stainless steel screws. Paper Holder is manufactured completely from AISI 304 stainless steel 4mm thick. It securely attaches to the grab bar with stainless steel screws. Paper roll is AISI 304 Stainless Steel tube, 25mm diameter, with stainless steel spring to facilitate insertion.
Ordering Information
| 0405.222-00-850 Swing Up Grab Bar D25mm L 850 mm Paper Holder with SS 304 – Bright |
0405.222-30-850 Swing Up Grab Bar D25mm L 850 mm Paper Holder with SS 304 – Satin |
