Wall Mounted Magnifying Mirror SS 304 – Bright

Print

Material
Stainless Steel AISI 304
(Click here to see our warranty.)

Technical Specifications

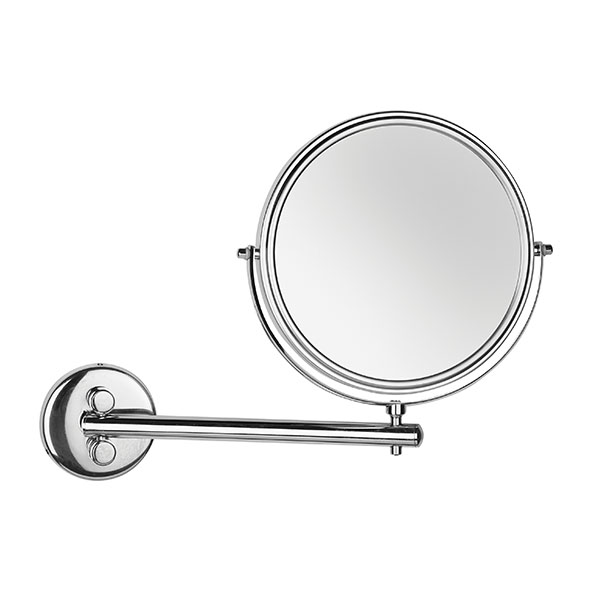

Wall mounted Magnifying Mirror is manufactured from AISI 304 stainless steel, aluminium and crystal. Mirror is double-sided, one magnifying (x3) and the other normal. Magnifying and normal mirror are 3mm crystal and attach to aluminium frame. Frame attaches to a semi-rounded frame by two stainless steel pivots, thus allowing the mirror to rotate freely by the horizontal axis. Frame attaches to stainless steel 16mm, 1.2mm thick support arm by stainless steel pivot rotating freely to the vertical axis. Support arm is mechanically pressed, with no welding, into stainless steel pivot supports that attach to 2mm thick mounting flange with stainless steel screws. Support arm may rotate by 180° horizontally. Concealed mounting flange is 1.25mm thick and securely attaches to wall with stainless steel screws and locks with mounting flange with stainless steel locking screw.

Ordering Information

0405.491-30
Wall Mounted Magnifying Mirror SS 304 – Bright
